ENGINEERING PROJECT

Chocolate bar dosing & packaging

Stainless-steel transport, dosing and packaging system for a five-mix of pre-packaged chocolate bars.

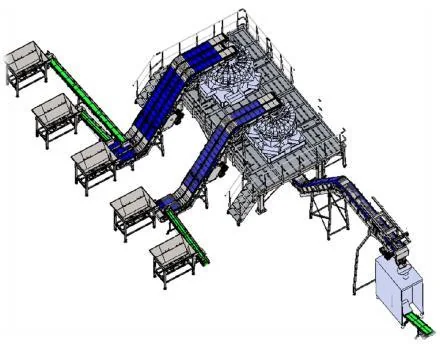

Visualization of the chocolate bar line with feeding conveyors and multihead weighers.

Application

Five-mix pre-packaged chocolate bars.

System scope

Vibratory feeders, conveyor belts and elevators are combined with multihead weighing and packaging equipment. The project concerns pre-packaged bars, not unwrapped chocolate processing.

Vibratory feeders
Conveyor belts
Elevators
Gantries
Multihead weigher
Packaging machine
Control cabinet and HMI

Engineering integration

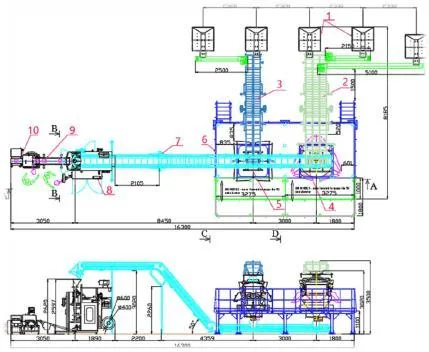

The system is made entirely of stainless steel. The visualizations and drawings show how feeding and elevating equipment connect to the weighing and packaging arrangement.
