Materials & finishes for support structures
Material and finish selection follows the hygiene zone, cleaning regime and budget. Vertex SynTech’s support-structure options include painted carbon steel, 304 stainless steel and 316 / 316L stainless steel.
Talk to our engineering team
Choose construction for the environment
Compare the available material options by application context. Selection for a particular cleaning chemistry, exposure and machine arrangement is part of the engineering brief.
| Material | Application context | Options and considerations |
|---|---|---|
| Painted carbon steel | Dry or lower-corrosion environments | Powder coating or industrial paint; suitable where full washdown is not required |
| 304 stainless steel | Food-processing construction with washdown requirements | Corrosion resistance and cleanable, hygienic detailing |
| 316 / 316L stainless steel | More aggressive cleaning or salt/chemical exposure | Higher corrosion-resistance option for the specified environment |
Surface and deck options
Available finishes include mill, brushed and glass-bead blasted surfaces. Checker plate is a decking option. Hybrid construction can combine painted and stainless components where appropriate.
Detail the access and cleaning features
The structural brief can include floor drains, removable railings, kick plates, protection covers and service openings. These details work with the layout, not as isolated finish choices.
- Confirm material grade and surface finish
- Define washdown zone and drainage route
- Identify removable railings and access openings
- Review cable and pneumatic routing
Examples of structural detailing

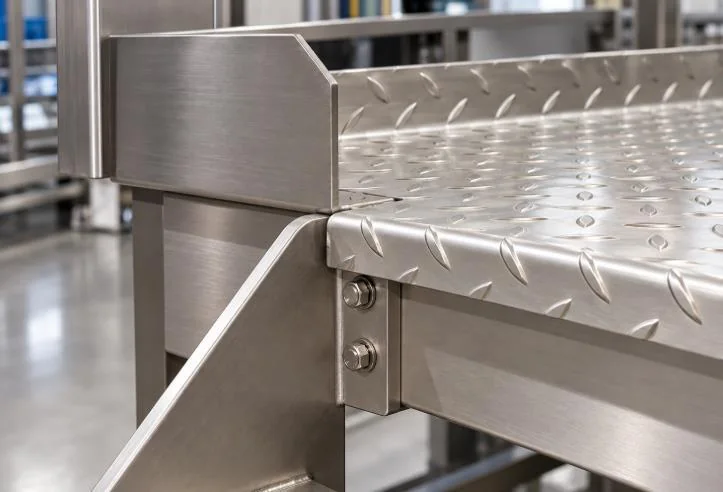

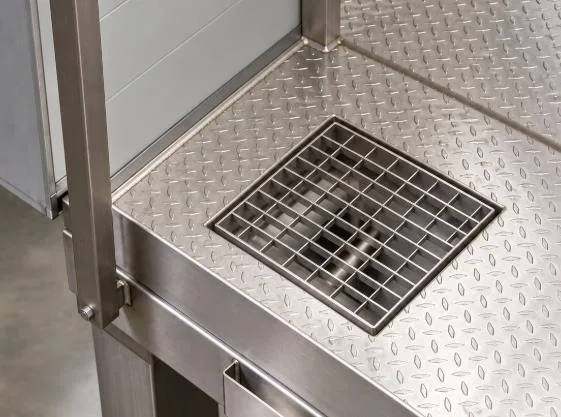

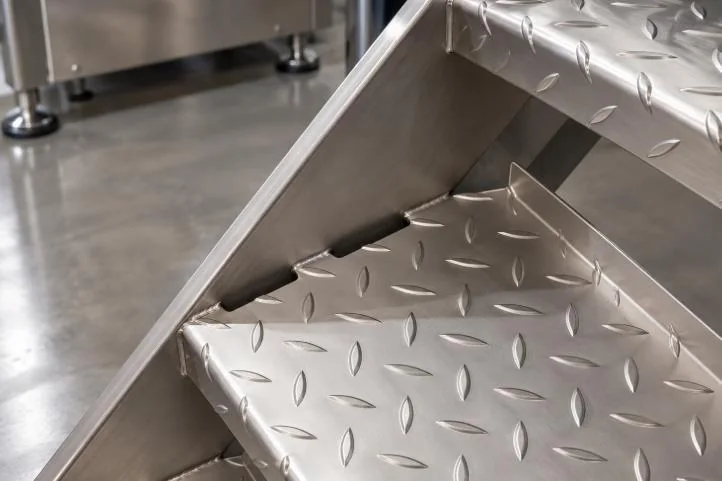

The equipment details show checker-plate stairs, a platform kick plate and a floor drain. They illustrate features to consider with the actual installation requirements.
